ACCUREF K-900/ACCUREF R-800

In the pursuit of quality and ergonomics, the highest level of perfection and beauty
has been achieved.

Auto Refract-Keratometer ACCUREF K-900
“GOOD DESIGN AWARD 2011”

New Generation DESIGN & STYLE
Exquisite detail and quality.
Sophisticated shape combined with soft curves and the attractive color with high quality two-tone metallic and pearlescent paintwork which complements any interior and appeals atmosphere of trust to the customer.

Feather-touch sensor button
The feather-touch sensor button used to interface with the screen enables sensitive and accurate operation.

Newly designed optical unit with further improved accuracy
The newly designed optical unit allows measurement of the minimum pupil diameter up to 2.0 mm and high-accuracy measurement.

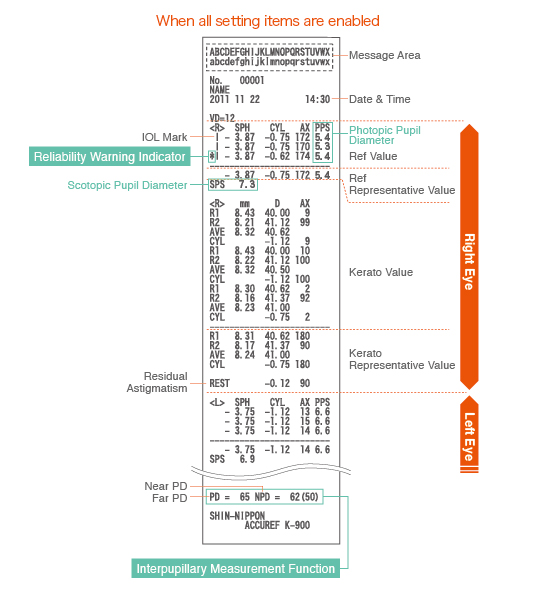

Useful function for actual measurement such as display of reliability warning indicator has been added.

Improved side flaps,head rest and chin rest
Side flaps mounted to each side of the measurement window enabling to block out the light realizes high accuracy. The modified shapes of the forehead rest and the chin rest help to minimize stress of the patient.

New Joystick
The completely redesigned joystick with the shape and top button allows the operator to control the unit with more precise and instinctive movement.

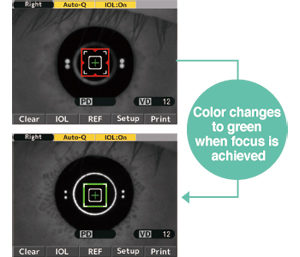

Newly designed IOL Mode [color focus indicator]
A subject with IOL was conventionally difficult to measure but this newly designed IOL mode has made it much easier.

Scotopic & Photopic Pupil Diameter Measurement

Scotopic measurement [S.P.S. function]
Photopic measurement [P.P.S. function]

Both scotopic and photopic measurements are available.

※ S.P.S:Scotopic Pupil Size
P.P.S:Photopic Pupil Size

Unique LCD Monitor
A swivel function to the left (30°) and a vertical tilt function (40°) have been added to the monitor unit. This swivel function allows measurement while supporting the patient.

AUTO REF-KERATOMETER ACCUREF K-900 SPECIFICATION

Refractive
measurement range
(Ref measurement)
Sphere (S) Measurement range -30D~±22D(VD=12)
-22D~±30D(VD=0)
Unit 0.12D, 0.25D (Switching)
Cylinder (C) Measurement range 0D~±10D (VD=0)
Unit 0.12D, 0.25D (Switching)
symbol -, +, ± (Switching)
Axis (A) Measurement range 0°~180°
Unit
Vertex distance 0, 10, 12, 13.5, 15mm
Minimum pupil diameter measurable φ2.0mm
Corneal curvature
radius measurement
Corneal curvature
radius
Measurement range 5.0mm~10.0mm
Unit 0.01mm
Corneal refractivity Measurement range 33.75D~67.5D
(where corneal refractive
index n=1.3375)
Unit 0.12D, 0.25D (Switching)
Cylinder (C) Measurement range 0D~±10D
Unit 0.12D, 0.25D (Switching)
symbol mm, -D, +D (Switching)
Axis angle Measurement range 0°~180°
Unit
PD measurement Measurement range 10mm~85mm(Near PD output)
Unit 1mm
Pupil diameter
measurement
Measurement range φ2.0mm~φ8.5mm
Unit 0.1mm
Measurement time Refractive measurement range Approx. 0.07sec.
Corneal curvature radius measurement Approx. 0.07sec.
Fog control Fogging for each measurement(Auto)
Fogging is provided at the first measurement followed by continuous measurement(Auto-Quick)
Size (W) 240mm (D) 422mm (H) 430mm
Movement range of
the measurement unit
Forward/backward ±22mm
Horizontal direction ±43mm
Vertical direction ±17mm
Movement range of the chin rest vertical ±30mm
Movement range of LCD +30°swivel (left only), +40°tilt
Weight approx. 13kg
Built-in monitor body 5.7 inch color LCD monitor
Printer thermal line printer (paper width 58mm)
Power voltage/
frequency
AC100V-240V, 50/60Hz
Power consumption 60VA
Power saving function OFF, 3, 5, 10min. (selectable)

AUTO REFRACTOMETER ACCUREF R-800 SPECIFICATION

Refractive
measurement range
(Ref measurement)
Sphere (S) Measurement range -30D~±22D(VD=12)
-22D~±30D(VD=0)
Unit 0.12D, 0.25D (Switching)
Cylinder (C) Measurement range 0~±10D (VD=0)
Unit 0.12D, 0.25D (Switching)
symbol -, +, ± (Switching)
Axis (A) Measurement range 0°~180°
Unit
Vertex distance 0, 10, 12, 13.5, 15mm
Minimum pupil diameter measurable φ2.0mm
PD measurement Measurement range 10mm~85mm(Near PD output)
Unit 1mm
Pupil diameter
measurement
Measurement range φ2.0mm~φ8.5mm
Unit 0.1mm
Measurement time Refractive measurement range Approx. 0.07sec.
Fog control Fogging for each measurement(Auto)
Fogging is provided at the first measurement followed by continuous measurement(Auto-Quick)
Size (W) 240mm (D) 422mm (H) 430mm
Movement range of
the measurement unit
Forward/backward ±22mm
Horizontal direction ±43mm
Vertical direction ±17mm
Movement range of the chin rest vertical ±30mm
Movement range of LCD +30°swivel (left only), +40°tilt
Weight approx. 13kg
Built-in monitor body 5.7 inch color LCD monitor
Printer thermal line printer (paper width 58mm)
Power voltage/
frequency
AC100V-240V, 50/60Hz
Power consumption 60VA
Power saving function OFF, 3, 5, 10min. (selectable)
